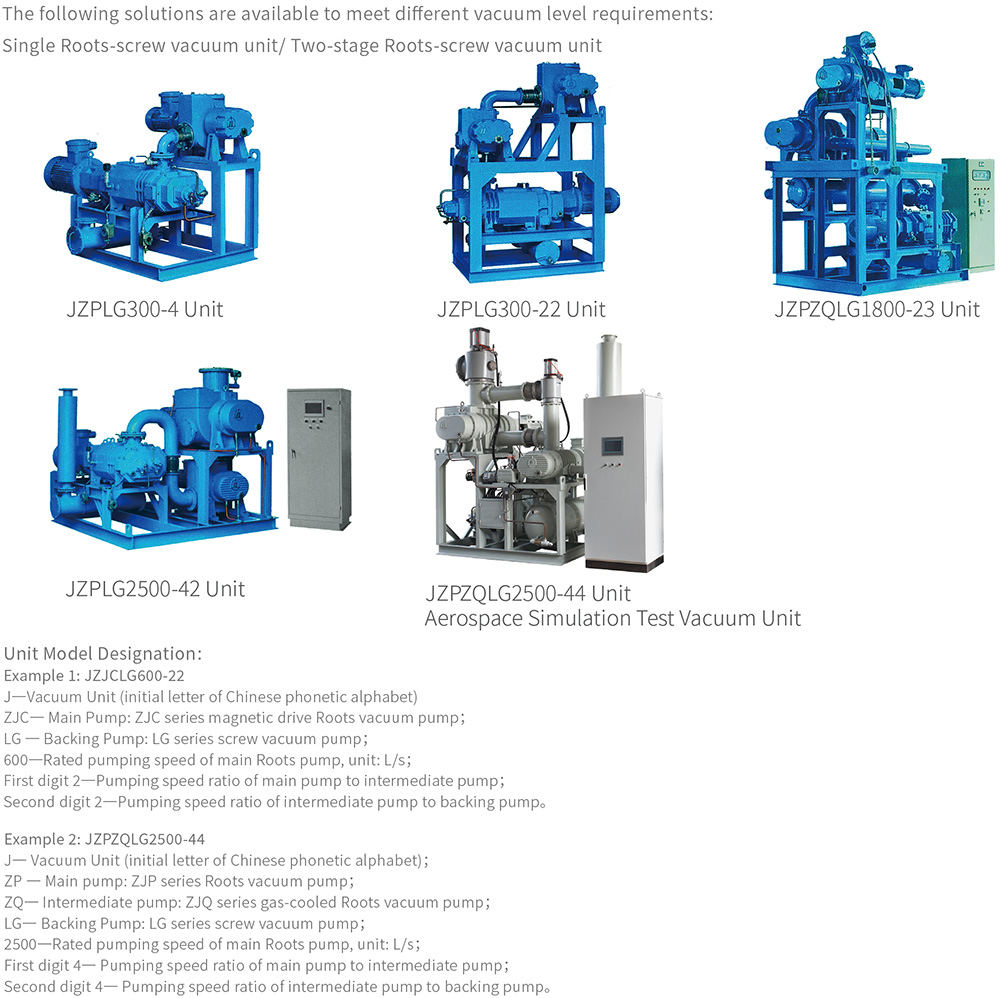

Structure & Features:

The Roots-screw vacuum unit comprises a Roots pump and a screw pump in series, equipped with piping, valves, base frame and electric control cabinet. The Roots pump is started by a vacuum sensor and vacuum relay once the backing screw pump is operational. As the rotating components of both the Roots pump and screw pump are non-contacting, the unit delivers stable operation, low noise, minimal vibration, compact structure and small footprint. This series is a dry vacuum unit with zero discharge of waste water or waste oil.

Application:

Roots-screw vacuum units are better suited for low-pressure operation than standalone screw vacuum pumps. For example, a vacuum distillation process requiring a pumping speed of 300 L/s and an operating pressure of 1000 Pa can adopt the JZPLG300-4 vacuum unit (15 kW). It provides higher energy efficiency than a single LG300 screw vacuum pump (37 kW) and achieves a lower ultimate pressure.

With remarkable energy saving, eco-friendly performance, high pumping efficiency in the high vacuum range and excellent vacuum level, this unit serves as an ideal pumping solution for industries including electrical engineering, electronic coating, metallurgy, heat treatment, drying, distillation, pharmaceuticals, chemical engineering and aerospace. It is particularly suitable for the semiconductor industry that demands zero oil vapor contamination, as well as process conditions with large water vapor load and low dust content.
